CDR3308功率電感
發布時間:2010-11-01-4258
產品型號：CDR3308系列

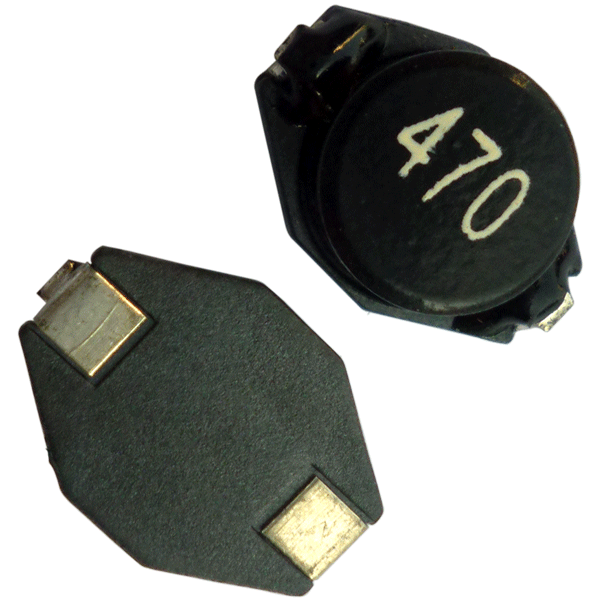

產品名稱：CDR3308功率電感
產品特點:
表面貼裝高功率電感，具有小型化，高品質，高能量?jī)?chǔ)存和低阻值之特性
產品應用:
電腦顯板卡，筆記本電腦，后置偏轉加速極，升降壓轉換器，脈沖記憶程序設計等
功率電感封裝
CDR3308功率電感常用規格：
|
品名 |
電感量 (uH) |
直流電阻 (OHM)MAX |
額定電流 (A) MAX |
自諧頻率 SRF（min）(MHz) |
|
CDR3308-100M |
10.00uH | 0.085 | 2.0 | 35 |
|
CDR3308-150M |
15.00uH | 0.120 | 1.5 | 33 |
|
CDR3308-220M |
22.00uH | 0.180 | 1.3 | 25 |
|
CDR3308-330M |
33.00uH | 0.250 | 1.1 | 19 |
|
CDR3308-470M |
47.00uH | 0.320 | 0.8 | 14 |
|
CDR3308-680M |
68.00uH | 0.540 | 0.7 | 12 |
|
CDR3308-101M |
100.00uH | 0.680 | 0.6 | 10 |
|
CDR3308-151M |
150.00uH | 0.940 | 0.5 | 8 |
|
CDR3308-221M |
220.00uH | 1.600 | 0.4 | 6 |
|
CDR3308-331M |
330.00uH | 2.150 | 0.3 | 5 |
|
CDR3308-471M |
470.00uH | 3.300 | 0.2 | 4 |
|
CDR3308-681M |
680.00uH | 4.400 | 0.1 | 3 |
|
CDR3308-102M |
1.0mH | 7.000 | 0.05 | 2.5 |
|
K:+10% ; M:+20% |
||||
東莞市欣永電子有限公司專業生產CDR3308功率電感，提供CDR3308功率電感資料，品質保證。服務優質。產品符合ROHS要求。
